ASME B18.2.2 Gi Hex Nut

Shanghai Powermax Fastener Co., Ltd.
Contact Now

ASME B18.2.2 Gi Hex Nut

  • 1
  • 2

Brand Name : PM

Model Number : M6-M64, 1/4"-4"

Certification : ISO

Place of Origin : CHINA

MOQ : 10PCS

Price : USD 0.0015-2 PER PCS

Payment Terms : L/C, T/T

Supply Ability : 500tons per month

Delivery Time : 15-25DAYS PER CONTAINER

Packaging Details : 25kgs/carton and 36 cartons on standard export wooden pallets

Standard : ASME/ANSI B 18.2.4.1

Size : 1/2"

Surface : Zinc Plated ( Clear/Blue/Yellow/Black )

Material : Carbon Steel,

Grade : SAE J995 Gr5,

Thread : UNC, UNF,

Product name : ANSI/ASME B18.2.2 SAE J995 Grade 5 gi hex nut

Sample : All sample free

Contact Now

ANSI/ASME B18.2.2 SAE J995 Grade 5 gi hex nut

Hex nuts (also referred to as finished hex nuts) are compatible with low carbon steel bolts such as Grade 2 ASTM A307. Grade 5 and Grade 8 nuts are also available in a finished pattern. Use a hex nut with a screw or hex head bolt to fasten two or more wood or metal parts. Hex nuts are often used in construction for framing or to create a bolted joint.

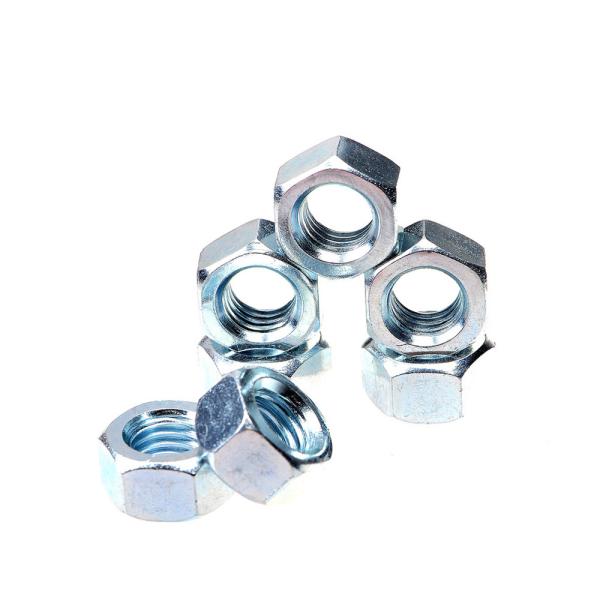

ASME B18.2.2 Gi Hex Nut

Standard: DIN934, UNI5588, ISO 4032, ASME/ANSI B 18.2.4.1

Size: 1/4”-4”, M5-M64
Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass

Grade: SAE J995 Gr.2,5,8; CL4, 5, 6, 8, 10, 12

Thread: M, UNC, UNF,BSW
Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.

Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet

b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet

Supply Ability:1000 tons per month

MinimumOrder:200kgs for each specification

Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP

Payment :T/T, L/C , D/A , D/P , Western Union,etc

Market:South&north Amrica/Europe/ etc.

Finished Hex Nuts: Dimensions (ANSI/ASME B18.2.2)
Nominal or Basic Major Diameter of Thread(D) Width Across Flats (S) Width Across Corners (E) Thickness of Hex Nuts (M)
Basic Max Min Max Min Basic Max Min
1/4 0.25 7/16 0.438 0.428 0.505 0.488 7/32 0.226 0.212
5/16 0.3125 1/2 0.5 0.489 0.577 0.557 17/64 0.273 0.258
3/8 0.375 9/16 0.562 0.551 0.65 0.628 21/64 0.337 0.32
7/16 0.4375 11/16 0.688 0.675 0.794 0.768 3/8 0.385 0.365
1/2 0.5 3/4 0.75 0.736 0.866 0.84 7/16 0.448 0.427
9/16 0.5625 7/8 0.875 0.861 1.01 0.982 31/64 0.496 0.473
5/8 0.625 15/16 0.938 0.922 1.083 1.051 35/64 0.559 0.535
3/4 0.75 1.1/8 1.125 1.088 1.299 1.24 41/64 0.665 0.617
7/8 0.875 1.5/16 1.312 1.269 1.516 1.447 3/4 0.776 0.724
1 1 1.1/2 1.5 1.45 1.732 1.653 55/64 0.887 0.831
1.1/8 1.125 1.11/16 1.688 1.631 1.949 1.859 31/32 0.999 0.939
1.1/4 1.25 1.7/8 1.875 1.812 2.165 2.066 1.1/16 1.094 1.03
1.3/8 1.375 2.1/16 2.062 1.994 2.382 2.273 1-11/64 1.206 1.138
1.1/2 1.5 2.1/4 2.25 2.175 2.598 2.48 1-9/32 1.317 1.245
1.5/8 1.625 2.7/16 2.438 2.356 2.815 2.686 1-25/64 1.429 1.353
1.3/4 1.75 2.5/8 2.625 2.538 3.031 2.893 1.1/2 1.54 1.46
2 2 3 3 2.9 3.464 3.306 1-23/32 1.763 1.675
2.1/4 2.25 3.3/8 3.375 3.263 3.897 3.719 1-15/16 1.986 1.89
2.1/2 2.5 3.3/4 3.75 3.625 4.33 4.133 2-5/32 2.209 2.105
2.3/4 2.75 4.1/8 4.125 3.988 4.763 4.456 2.3/8 2.431 2.319
3 3 4.1/2 4.5 4.35 5.196 4.959 2-19/32 2.654 2.534
